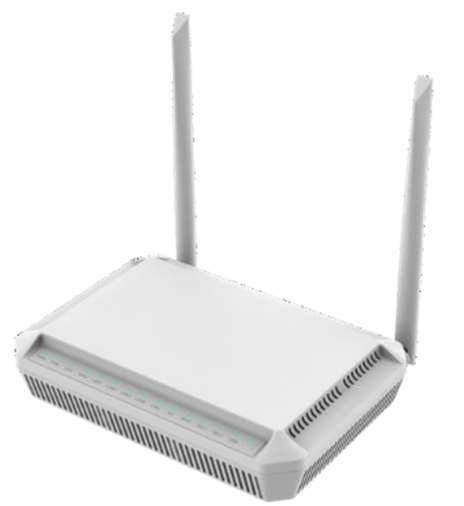

Dual-Band AC1200 GPON ONT with 4 Gigabit Ports

Dual-Band AC1200 GPON ONT with 4 Gigabit Ports

Dual-Band AC1200 GPON ONT with 4 Gigabit Ports

Plaats van herkomst	China
Merknaam	Dawnergy

Productdetails

Optische interface:

1*GPON -poort, SC/APC

Ethernet:

4*GE RJ45 -poort

Power Input:

DC 12V/1A

Markeren:

Dual-Band AC1200 GPON ONT

,

4-port Gigabit GPON ONT

,

Fiber optic router with warranty

Betaling & het Verschepen Termijnen

Verpakking Details

Karton

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Productbeschrijving

Dual-Band AC1200 GPON ONT with 4 Gigabit Ports

Key Features

Dual-band Wi-Fi 5 (AC1200) with 2.4GHz and 5GHz support
1 GPON port (SC/APC connector) for fiber optic connection
4 Gigabit Ethernet ports for wired connections
1 FXS RJ11 port for telephone service
Advanced wireless features including WPS and EasyMesh
Comprehensive security features including SPI firewall

Dual-Band AC1200 GPON ONT with 4 Gigabit Ports 0

Basic Specifications

Optical Interface	1×GPON port, SC/APC
Ethernet	4×GE RJ45 port
Telephone	1×FXS RJ11 ports
USB	1×USB2.0
Power Input	DC 12V/1A

GPON Specifications

Standards	ITU-T G.984, G.988
Optical Module	Class B+, BOB
Bandwidth	2.488Gbps Downstream, 1.244Gbps Upstream
Wavelength	1310nm Transmit, 1490nm Receive
Max Distance	20 Km
TX Output	0.5~5dBm
RX Input	-8 to -28dBm

Wireless Specifications

Standards	IEEE 802.11 a/b/g/n/ac, WMM, WPS, EasyMesh
Frequency	2.4GHz & 5GHz
Data Rate	2.4GHz: 300Mbps (40MHz) 5GHz: 867Mbps (80MHz)
Security	WEP, WPA/WPA2-PSK
Antenna	2×5dBi External antennas

Physical Specifications

Temperature	Operating: 0~45℃ (32~113℉) Storage: -20~65℃ (-4~149℉)
Humidity	5%~95% (non-condensing)
Dimensions	195×134×45mm (W×D×H)
Weight	320g (device only)
Color	White

Package Contents

1× GPON ONT
1× Power Adapter (12VDC)
1× Ethernet Cable (CAT5e)
1× Quick Installation Guide

Certifications

CE, WiFi Alliance, BBF.247, NOM
