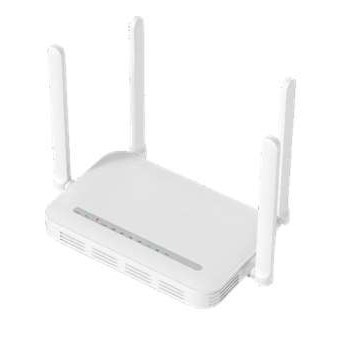

Dual-Band Wi-Fi 6 AX3000 GPON ONT with 4 GE Ports
  • Dual-Band Wi-Fi 6 AX3000 GPON ONT with 4 GE Ports
Dual-Band Wi-Fi 6 AX3000 GPON ONT with 4 GE Ports

Dual-Band Wi-Fi 6 AX3000 GPON ONT with 4 GE Ports

Plaats van herkomst China
Merknaam Dawnergy
Productdetails
Optische interface:
1*GPON -poort, SC/APC
Ethernet:
4*GE RJ45 -poort
Power Input:
GELIJKSTROOM 12V/1.5A
Markeren:

Dual-Band Wi-Fi 6 ONT

,

AX3000 GPON router

,

4-port GE ONT

Betaling & het Verschepen Termijnen
Verpakking Details
Karton
Levertijd
5-8 werkdagen
Betalingscondities
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Productbeschrijving
Dual-Band Wi-Fi 6 AX 3000 GPON ONT
Dual-Band Wi-Fi 6 AX3000 GPON ONT with 4 GE Ports 0
Key Specifications
Attribute Value
Optical interface 1*GPON port, SC/APC
Ethernet 4*GE RJ45 port
Power Input DC 12V/1.5A
Detailed Specifications
Interfaces
Optical interface 1*GPON port, SC/APC
Ethernet 4*GE RJ45 port
Voice 1*FXS RJ11 ports
Buttons Reset, Power On/Off, WPS
LEDs Power, PON, LOS, Internet, LAN1~4; 2.4G,5G, WPS, TEL
GPON
Standards ITU-T G.984, G.988
Optical Module Class B+, BOB
Bandwidth 2.488Gbps Downstream, 1.244Gbps Upstream
Wavelength 1310nm Transmit, 1490nm Receive
Max Distance 20 Km
Wireless
Standards IEEE 802.11 b/g/n/ax, 2T2R 5GHz, IEEE 802.11 a/n/ac/ax, 3T3R WMM, QoS, WPS 2.0
Data Rate 2.4GHz - 573Mbps(11ax@40MHz)
5GHz - 2402Mbps(11ax@160MHz)
Security WEP, WPA/WPA2-PSK, WPA3-SAE
Antenna 4*5dBi External Omni-directional
Physical
Dimensions 195*125*35mm (W*D*H)
Net Weight 420g (device only)
Housing Color White or Black
Packaging Contents
  • 1x GPON ONT
  • 1x Power Adapter, 12VDC
  • 1x Ethernet Cable, CAT5e
  • 1x Quick Installation Guide
Certifications

CE, WiFi Alliance

Markeringen:

DC5V Fiber Optic Active Components,

10dBm Fiber Optic Active Components,

1550nm Fiber Optic Active Components
