GPON ONT SFU with 1GbE Port and SC/APC Connector
  • GPON ONT SFU with 1GbE Port and SC/APC Connector
  • GPON ONT SFU with 1GbE Port and SC/APC Connector
  • GPON ONT SFU with 1GbE Port and SC/APC Connector
GPON ONT SFU with 1GbE Port and SC/APC Connector

GPON ONT SFU with 1GbE Port and SC/APC Connector

Plaats van herkomst China
Merknaam Dawnergy
Productdetails
Type terminal:
GPON ONT
Stroomvoorziening:
12VDC 0,5A
Dimensie (mm):
90*70*27 (w*d*h)
Markeren:

GPON ONT SFU with 1GbE port

,

GPON ONT with SC/APC connector

,

fiber optic ONT with warranty

Betaling & het Verschepen Termijnen
Verpakking Details
Karton
Levertijd
5-8 werkdagen
Betalingscondities
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Productbeschrijving

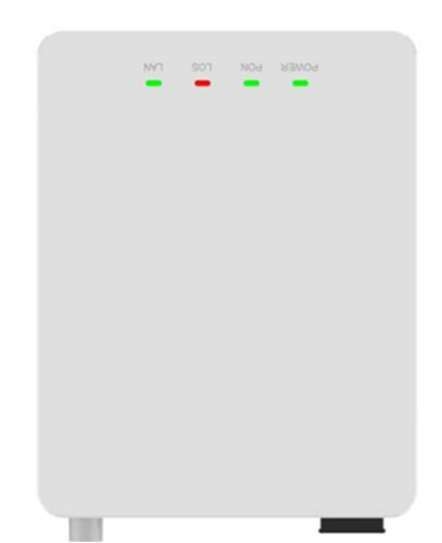

GPON ONT Single Family Unit (SFU)
GPON ONT SFU with 1GbE Port and SC/APC Connector 0
Key Features
  • 1*GPON Port, SC/APC connector
  • 1*10/100/1000Mbps RJ45 Ethernet Port
  • L2 Bridge functionality
Technical Specifications
Attribute Value
Terminal Type GPON ONT
Power Supply 12VDC 0.5A
Dimensions (mm) 90*70*27 (W*D*H)
Net Weight 74g (device only)
Power Consumption ≤ 5W
GPON Specifications
Standards ITU-T G.984 series
Optical Module Class B+, BOSA
Bandwidth 2.488Gbps Downstream
1.244Gbps Upstream
Wavelength 1310nm Transmit
1490nm Receive
Max Distance 20 Km
Environmental Specifications
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 65°C (-4°F to 149°F)
Operating Humidity 0% to 90% non-condensing

Markeringen:

DC5V Fiber Optic Active Components,

10dBm Fiber Optic Active Components,

1550nm Fiber Optic Active Components
